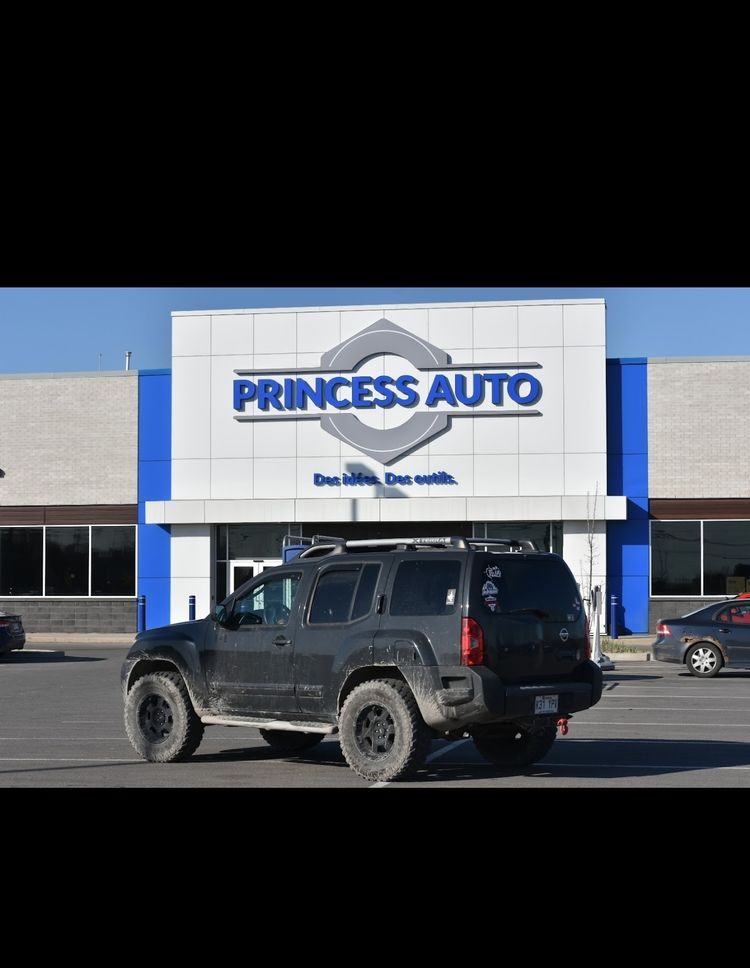

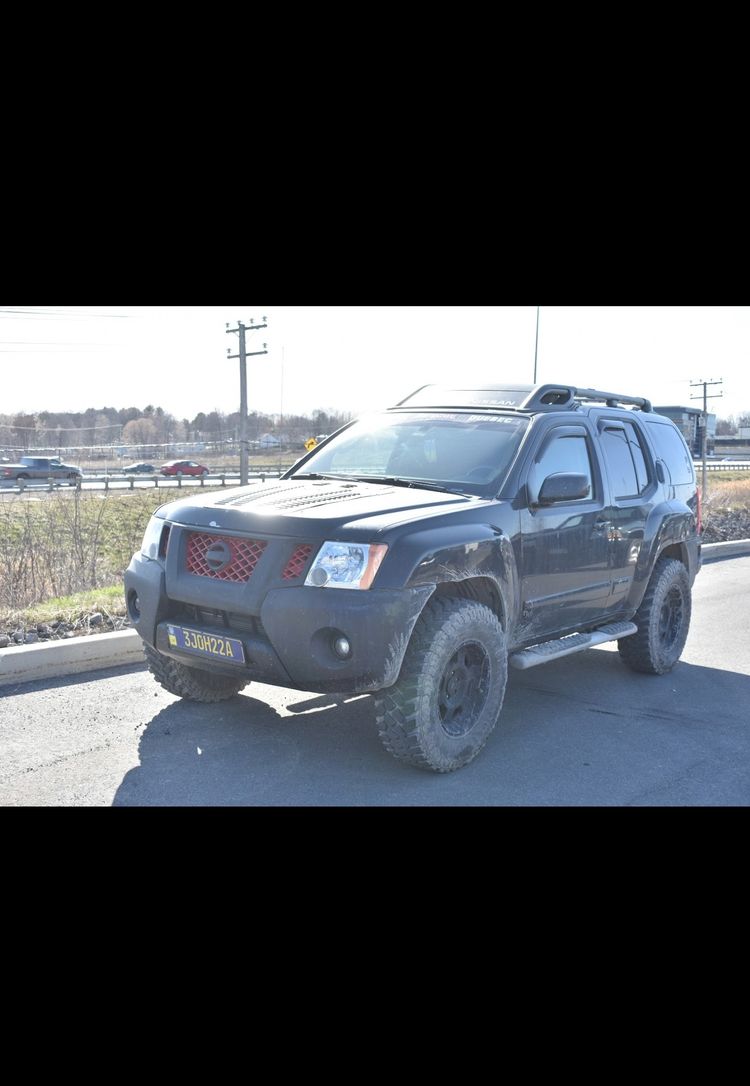

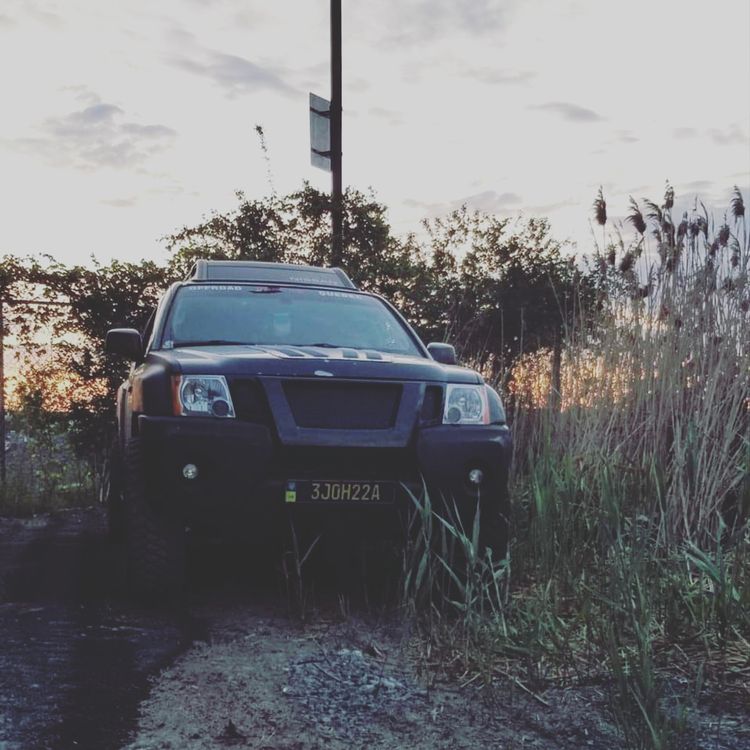

2012 NISSAN XTERRA SV

Wheels/Tires:

  • ✅ Firestone Destination MT2 - LT285/70R17 x4 (33") - Diabo Auto Chateauguay, Qc.
  • ✅ GoodYear Duratec - LT285/70R17 x4 (33") - Diabo Auto Chateauguay, Qc.
  • ✅ HD - Thunder 17" (Winter) wheels 6x114 x4 - Diabo Auto Chateauguay, Qc.
  • ✅ Pro Comp 89 Series Kore Matte Black Alloy Wheels 17" x4 (Summer) - 4Wheelparts Chateauguay, Qc.

Suspension/Steering/Differential:

  • ✅ Bilstein - Rear 5100 x2
  • ✅ Rancho - Front 2 Inch Loaded QuickLIFT 2x
  • ✅ Alcan Spring Rear Leaf Springs
  • ✅ Offroad Gorilla - Rear Axle Differential Breather Vent Kit
  • ✅ Freedom Offroad UCA x2
  • ✅ Z1Offroad Heavy-Duty Shackles greasable.

Engine:

  • ✅ Airaid PowerAid - Throttle Body Spacer
  • ✅ NGK - Iridium IX x6
  • ✅ Rugged Rocks - Battery Terminal Distribution Blocks x2
  • ✅ Offroad Gorilla - Oil Catch Can Silicone Hoses, 3/8" ID
  • ✅ Offroad Gorilla - Kite Battery Hold Down
  • ✅ Catch can + Offroad Gorilla - Red Hoses.

Lighting: (Not assembled [NA] / installed [i])

  • ✅ Car Lighting District - Brake, Reverse, Dome, LED light bulb

Accessories:

  • ✅ ARB - Digital Tire Inflator
  • ✅ Hi-Lift - Jack XT485 48-Inch Hi-Lift X-TREME Jack
  • ✅ Hi-Lift - Running Gear Jack Cover, Black
  • ✅ Seven Sparta - Base Stand & Handle Keeper Compatible with Hi Lift Jack Accessories Handle Bar Protector
  • ✅ Hi-Lift - Jack ORK Off-Road Kit
  • ✅ Hi-Lift - Jack TM-700 1"-2" Adjustable Tube Mount
  • ✅ Hi-Lift - Jack LM-100 Lift-Mate
  • ✅ GSPSCN - Silver Tire Inflator Heavy Duty Double Cylinders with Portable Bag x1
  • ✅ My Medic - MYFAK FIRST AID KIT x1

Interior:

  • ✅ RoadPro - RP-9CC 9-Feet RG58AU Cable with PL-259 Connectors for CB and Ham Radios
  • ✅ President - Andy II FCC CB
  • ❌ Heated Steering Wheel Mod ( https://www.thenewx.org/threads/how-to-heated-steering-wheel.111202/ ) coming soon... **Bought only the heated steering wheel, missing more parts.**

Exterior:

  • ✅ TJ Hood Louver PC 4wheelparts Part# PSC 14-53-011PC

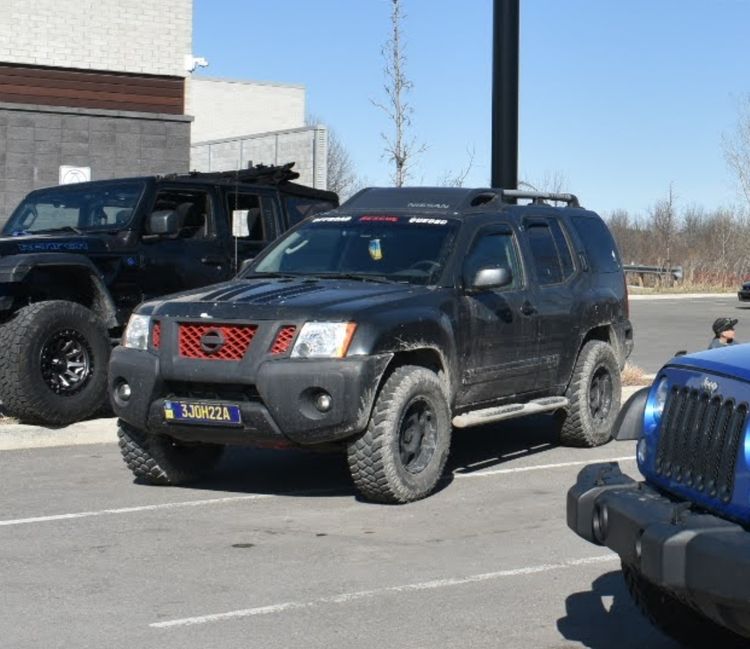

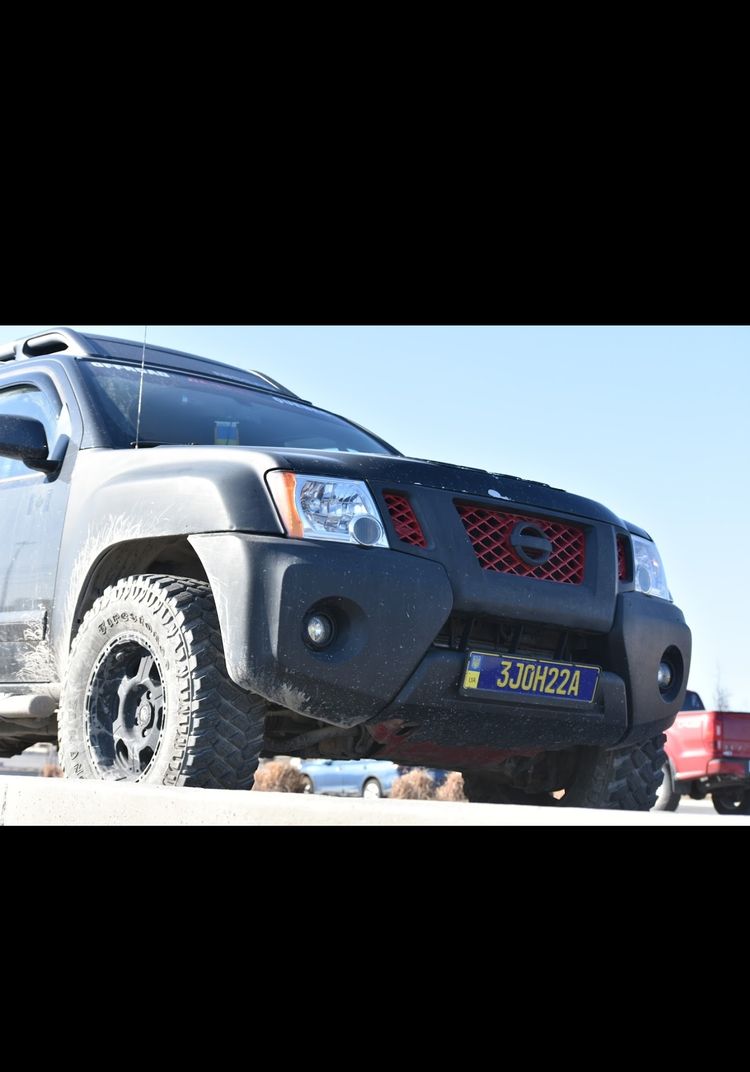

  • ✅ customcargrills - Nissan Xterra Mesh Grill Set
  • ✅ Rago Fabrication - Ditch Light Brackets & Ditch Light Bracket Extensions(Set).
  • ✅️ Trimax TDRRHR Receiver Hitch D-Ring (Red)
  • ✅️ Puermto Original Side Window Wind Deflector

Fixes:

  • 03/29/2022 New Alternator.
  • 05/07/2022 New Belt Tensioner.
  • 08/31/2020 New Battery Terminals.
  • 05/26/2020 New Condenser.
  • 04/07/2021 New Rear Leaf Springs.
  • 10/03/2021 New Rear Shocks.
  • 11/13/2021 New Sway bar Links.
  • 04/17/2021 new Summer Tires Firestones destination.
  • 09/29/2021 new Winter Tires Goodyear Duratrac LT.
  • 05/12/2017 TAG tracker device.
  • 03/15/2022 New Radiator, Wheel hub, Rear leaf spring bushings , New Thermostat, Synthetic oil change.
  • 06/24/2021 Hand brake fixed.
  • 07/12/2022 New radiator Fan Clutch
  • 11/20/2022 Automatic transmission fluid change w/ 3L bottles out of 12.
  • 04/16/2023 Catch can
  • 04/16/2023 Freedom Offroad UCA.
  • 06/11/2023 all 4 brake change with Max advanced Brakes Elite XDS Front + Rear Cross-Drill & Slots Rotos with Elite Max Brake Pads.
  • 06/24/2023 LCA x2 + Cam bolts + New Tie rod ends x2

Titan swap parts collection: TheNewX.org Full Titan Swap info

  • ✅ Titan front differential M205
  • ✅ Rough Country Titan Upper control arms x2 - right and left
  • ✅ Titan Lower Control Arms x2 - right and left (stock)
  • ✅ (x12) M205 Halfshaft Flange Bolts Part# 39606-17V0A)
  • ❌ Titan CV Halfshafts x2
  • ❌ (x3) 19mm Diff/Frame Bolts (Part #: 54726-7S000)
  • ❌ You will need nuts for two of these. (Part #: 08918-3442A) the third one uses a nut that is welded into the frame itself....
  • ❌ (x8) 14mm new front DS(Drive Shaft) bolts (Part #: 37120-4P00A) /nuts (Part #: 37171-7S00A)
  • ❌ (x2) New 32mm halfaxle/Hub Nuts (Part #: 40262-A60001)
  • ❌ Optional - M205 Flange Seals (Part#: 38542N)
  • ❌ 3 Quarts of 80W-90 or 75W-90 Synthetic Gear Oil (if you are swapping in an M205)
  • ❌ 3 Quarts of 75W-140 Synthetic Gear Oil (if you are swapping in an M226)
  • ❌ PRG Tie Rod Extensions
  • ❌ E-locker Wiring Harness (if you opted to swap in an M226 w/ E-locker) (Part#:24168-EA800) = Going to get Air locker.
  • ✅ M226 Rear 2006 Frontier Non locker, i'll need to cut spring perches off and weld them back on underneath since frontier rear axles are spring over and xterra's are spring under.

Brakes

  • ✅️ MAX Advanced XDS performance Rotors and pads.
